Fritting Furnace

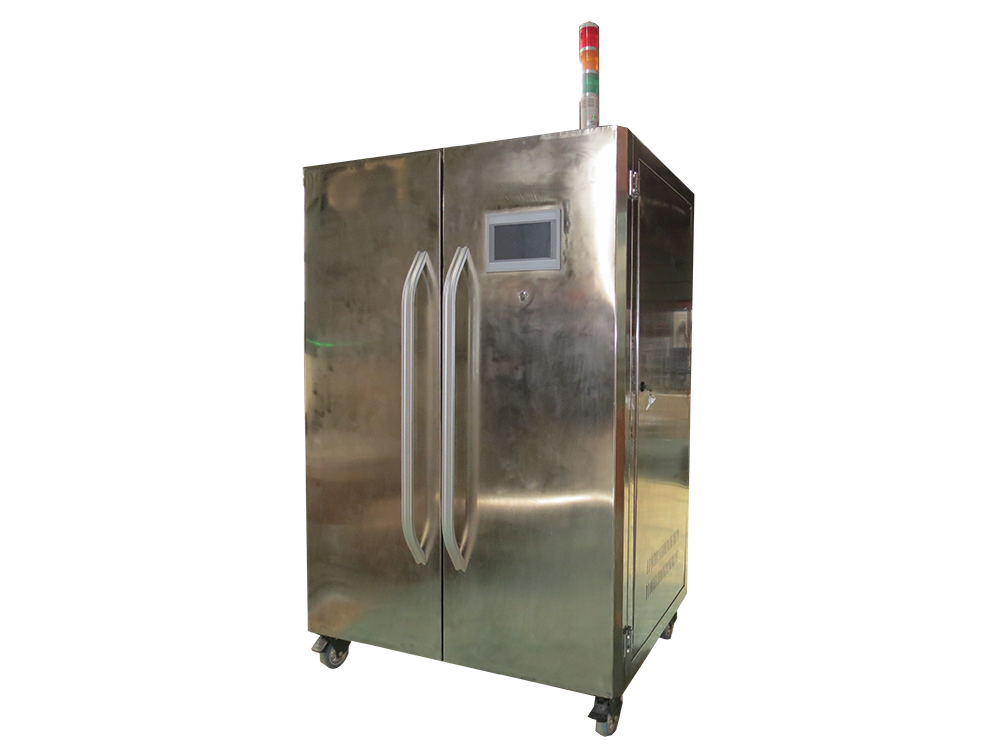

Safety-Type Stainless Steel High-Temperature Frit Furnace LYL-20RUS
DESCRIPTION:
- Model No: LYL-20RUS
- Heating Rate: ≤0.1-40°C/min
- Rated Voltage: 220V/380V
- Chamber Size: Customizable
- Design Temperature: 800°C-1800°C
- Temperature Control Accuracy: ±1°C
- Temperature Measuring Element: K (0-1300°C) / S(0-1600°C)/ B (0-1820°C)
//
PRODUCT INTRODUCTION
Brief Introduction

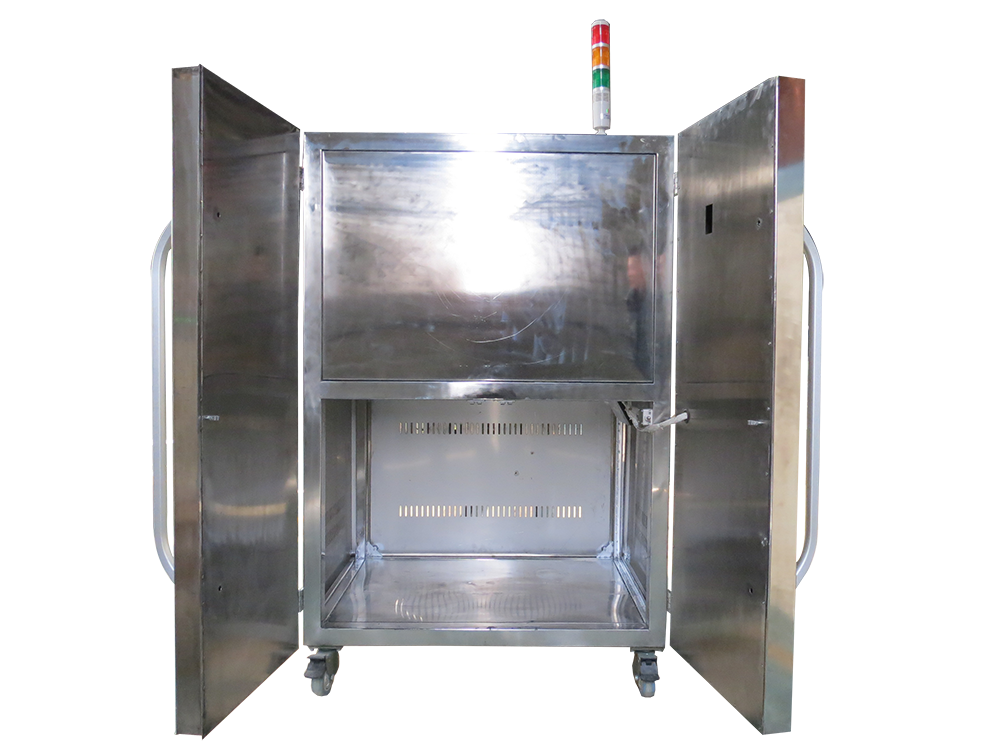

The LYL-20RUS series safety-type stainless steel frit furnace is a high-temperature, energy-saving and precision frit furnace. Developed independently with introduced advanced technologies, it is a new energy-saving and environment-friendly electric furnace. It features an advanced and reasonable structure with an elegant and generous appearance. The outer shell is made of high-quality stainless steel plate processed by advanced CNC machine tools, delivering excellent high temperature resistance and corrosion resistance. Equipped with premium heating elements and an air cooling system between the double-layer furnace shell, the furnace can cool down rapidly.
It boasts advantages such as uniform temperature field, low surface temperature of the furnace body, fast heating and cooling rate, and outstanding energy-saving performance. The furnace chamber is constructed with imported composite alumina fiber materials via CNC processing technology, featuring strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag falling and no pollution, as well as a long service life.
The control system adopts microcomputer artificial intelligence regulation technology, supporting PID regulation, automatic control and self-tuning functions with multi-segment program programming. It can set various heating, heat preservation and cooling programs with high temperature control accuracy. It adopts integrated module silicon controlled rectifier control and phase-shift triggering. The protection system is equipped with independent over-temperature protection, over-pressure, over-current, electric leakage, short circuit and other protection functions. With a high degree of automation, all technical indicators have reached the advanced industry level.
Application
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for experimental and production purposes involving powder, electronics, metallurgy, medicine, ceramics, new materials, chemical engineering, metal sintering and metal heat treatment.
Qualifications & Honors
-
ISO 9001:2015 Quality Management System Certification
-
CE Certification (EU Conformity)
-
Luoyang City "Model Enterprise for Civilized and Honest Operation"
-
"Leading Brand in China's Electric Furnace Industry"
-
"AAA Enterprise for Quality, Service, and Creditworthiness"
-
Products can withstand testing by authoritative inspection institutions; third-party verification certificates can be provided upon request.
//
PRODUCT PARAMETERS
Main Technical Parameters
Item |
Specification |
|---|---|
Rated Voltage |
380V |
Heating Rate |
≤1-40℃/min (humanized adjustable) |
Temperature Control Accuracy |
±1℃ |
Control Mode |
PID regulation, microcomputer control, programmable temperature control curve, no need for supervision (automatic heating, heat preservation, cooling) |
Dual-loop Protection |
Overtemperature, overpressure, overcurrent, thermocouple break, power failure, etc. |
Thermocouple Model |
Type B / Type S |
Heating Element |

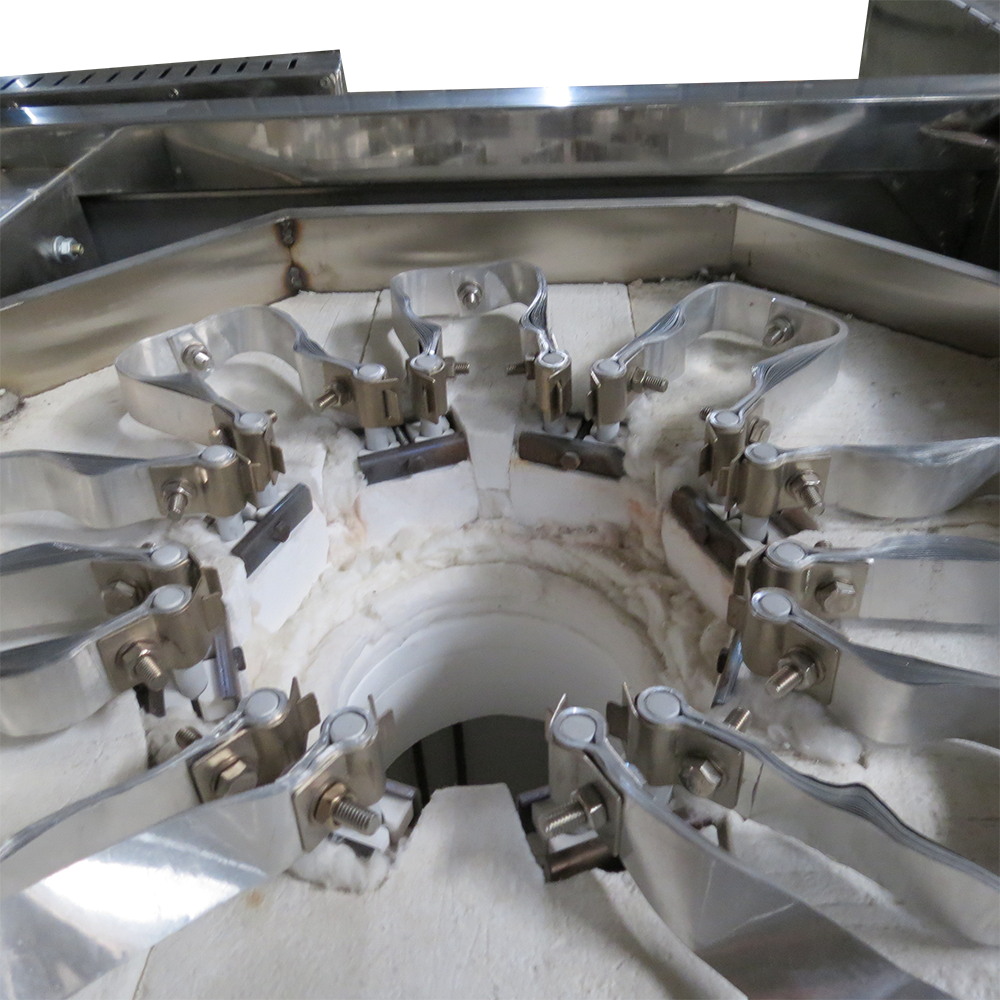

Imported high-quality silicon molybdenum rod / high-quality silicon carbon rod / high-quality resistance wire |
Furnace Chamber Material |
Made of imported composite alumina fiber, with good thermal insulation performance, high temperature resistance, and thermal shock resistance. |
Loading Method |

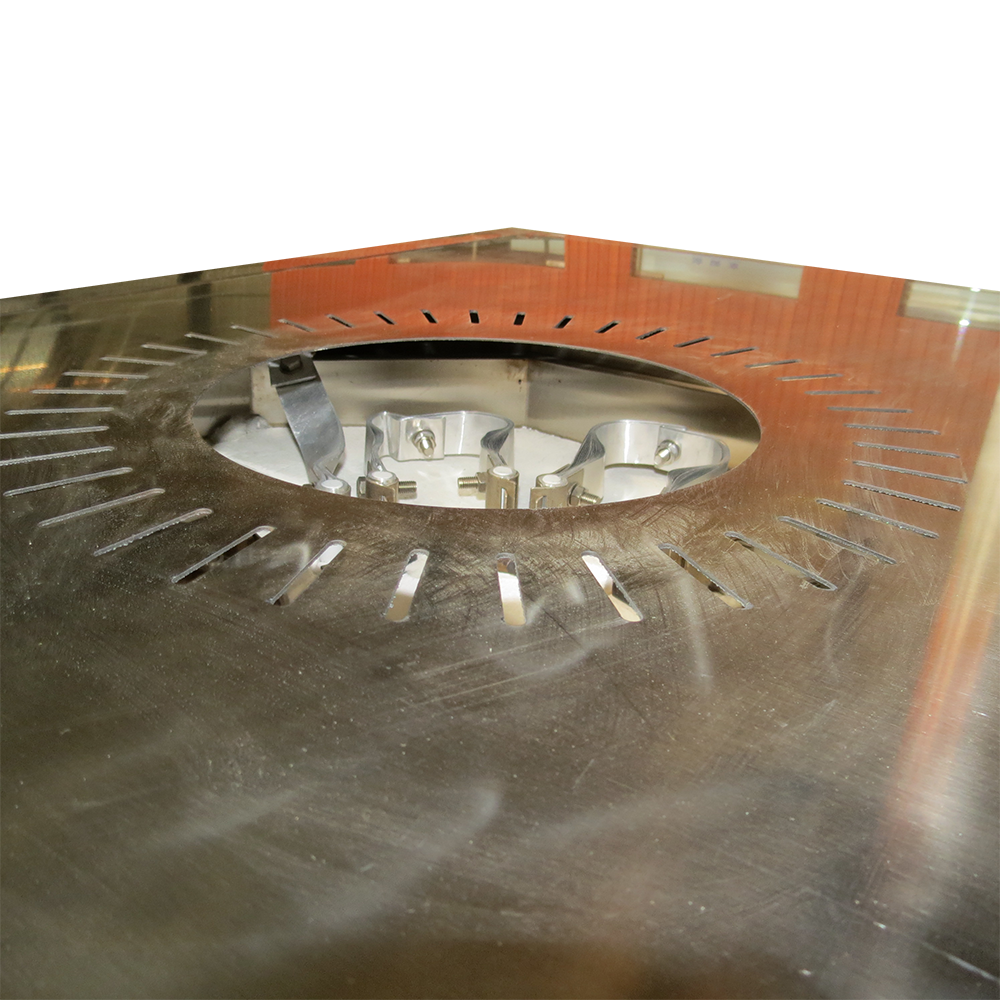

Top loading |
Discharging Method |
Bottom discharging |
Furnace Shell Surface Temperature |
≤35℃ |
Temperature Class |
800℃ 1000℃ 1200℃ 1400℃ 1600℃ 1700℃ 1800℃ |
Selection Guide
Crucible Volume (L) |
Voltage (V) |
Power (kW) |
Temperature Control Accuracy |
|---|---|---|---|
0.9 |
220 |
4 |
±1℃ |
1.6 |
380 |
10 |
±1℃ |
3 |
380 |
12 |
±1℃ |
5 |
380 |
15 |
±1℃ |
15 |
380 |
18 |
±1℃ |
30 |
380 |
25 |
±1℃ |
Crucible volume can be customized according to customer requirements!
//
