Fritting Furnace

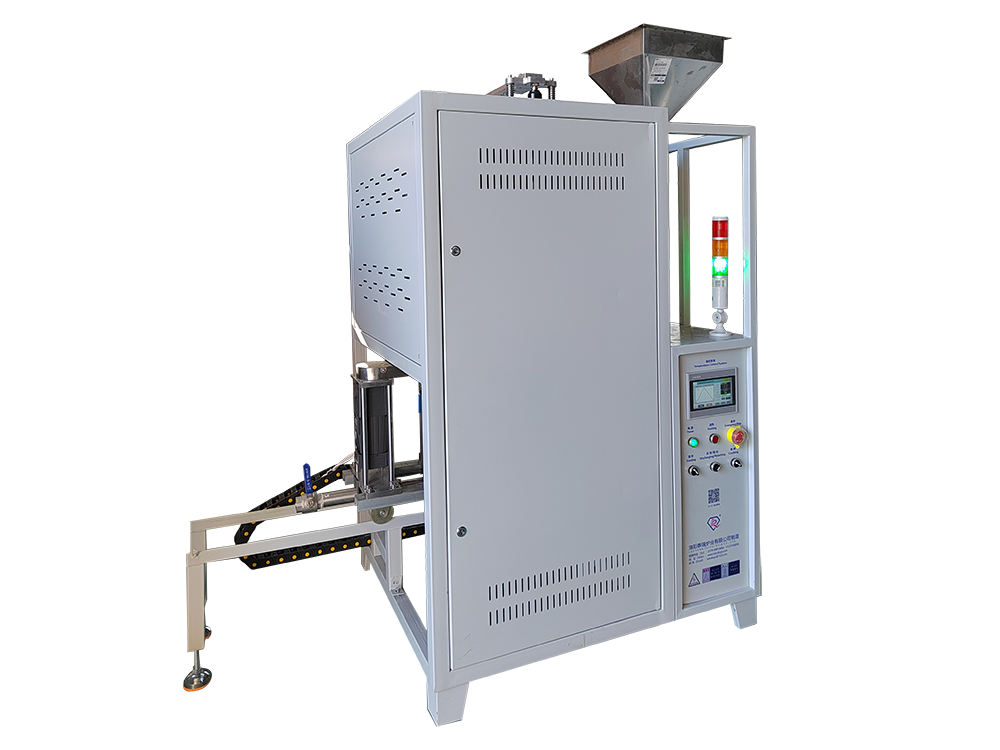

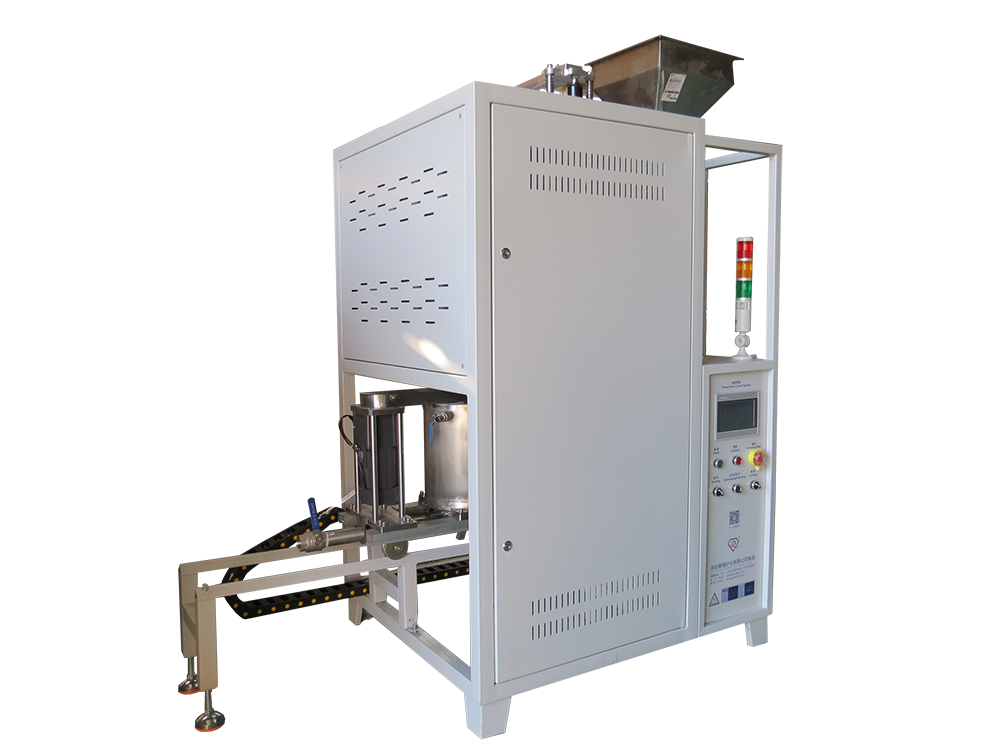

LYL-18SRL Safety-Type Fully Automatic Frit Furnace
DESCRIPTION:
- Model No: LYL-18SRL
- Heating Rate: ≤0.1-40°C/min
- Rated Voltage: 220V/380V
- Chamber Size: Customizable
- Design Temperature: 800°C-1800°C
- Temperature Control Accuracy: ±1°C
- Temperature Measuring Element: K (0-1300°C) / S(0-1600°C)/ B (0-1820°C)
//
PRODUCT INTRODUCTION
Brief Introduction
The LYL-18SRL series safety-type fully automatic high-temperature frit furnace is an upgraded version of the frit furnace. It features faster, more stable and safer feeding, more convenient material flowing and more thorough crushing.
It is a new energy-saving and eco-friendly electric furnace independently developed and manufactured by adopting advanced imported technologies. The furnace boasts an advanced and reasonable structure with an elegant and streamlined appearance. The outer shell is made of high-quality cold-rolled steel plate processed by advanced CNC machine tools, and finished with luxury and stylish imported two-tone epoxy powder electrostatic spraying. It features high temperature resistance and corrosion resistance. Equipped with premium heating elements and an air cooling system arranged between the double-layer furnace shell, the equipment can achieve rapid cooling.
The furnace has outstanding advantages such as uniform temperature field, low surface temperature of the furnace body, fast heating and cooling rate, and excellent energy-saving performance. The furnace chamber is constructed of imported composite alumina fiber materials through CNC forming technology, featuring superior thermal shock resistance and corrosion resistance. It is free from collapse, crystallization, slag falling and pollution, and enjoys a long service life.
The control system adopts microcomputer intelligent regulation technology, with PID regulation, automatic control and self-tuning functions, as well as multi-segment programmable control. It can set various procedures of heating up, heat preservation and cooling down with high temperature control accuracy. It adopts integrated module silicon controlled rectifier control and phase-shift triggering mode. The protection system is provided with independent protections against over-temperature, over-pressure, over-current, electric leakage and short circuit. With a high degree of automation, all performance indicators have reached the advanced industry standard.
Application
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for experimental and production purposes involving powder, electronics, metallurgy, medicine, ceramics, new materials, chemical engineering, metal sintering and metal heat treatment.
Qualifications & Honors
-
ISO 9001:2015 Quality Management System Certification
-
CE Certification (EU Conformity)
-
Luoyang City "Model Enterprise for Civilized and Honest Operation"
-
"Leading Brand in China's Electric Furnace Industry"
-
"AAA Enterprise for Quality, Service, and Creditworthiness"
-
Products can withstand testing by authoritative inspection institutions; third-party verification certificates can be provided upon request.
//
PRODUCT PARAMETERS
Main Technical Parameters
Item |
Specification |
|---|---|
Rated Voltage |
380V |
Design Temperature |
1750℃ |
Long-term Working Temperature |
1700℃ |
Design Heating Rate |
0.1~40℃/min, humanized adjustable |
Crucible Volume |
1.6L |
Crucible Material |
High-purity quartz (99.9%) |
Loading and Tapping Method |
Top loading, bottom tapping (automatic feeding, with stirring, automatic tapping, with crushing) (upgraded feeding method) |
Tapping Method |
Electric crucible seal head, automatic sealing or opening seal head, automatic control of tapping for more convenience |
Temperature Control Accuracy |
±1℃ |
Protection Device |
Adopting independent dual-loop control, dual-loop protection: (overtemperature, overpressure, overcurrent, thermocouple break, power failure, leakage, short circuit, etc.) |
Temperature Control Instrument |
Intelligent PID regulation, microcomputer automatic control, programmable temperature control curve, no need for supervision (automatic heating, heat preservation, cooling). |
Temperature Measuring Element |
Type B platinum-rhodium (0-1820℃) |
Heating Element |
1900U-type silicon molybdenum rod |
Complete Set Weight |
Approx. 150Kg |
Refractory Material |
Double-layer heat-resistant insulation, imported double-layer thermal resistant composite alumina fiber board |
Furnace Shell Surface Temperature |
≤43℃ |
Furnace Body |
Double-layer heat resistance, safety type, ensuring operator safety |
Temperature Class |
800℃ 1000℃ 1200℃ 1400℃ 1600℃ 1700℃ 1800℃ |
Selection Guide
Crucible Volume (L) |
Voltage (V) |
Power (kW) |
Temperature Control Accuracy |
|---|---|---|---|
5 |
380 |
15 |
±1℃ |
15 |
380 |
18 |
±1℃ |
30 |
380 |
25 |
±1℃ |
Crucible volume can be customized according to customer requirements!
//
