Tube Furnace

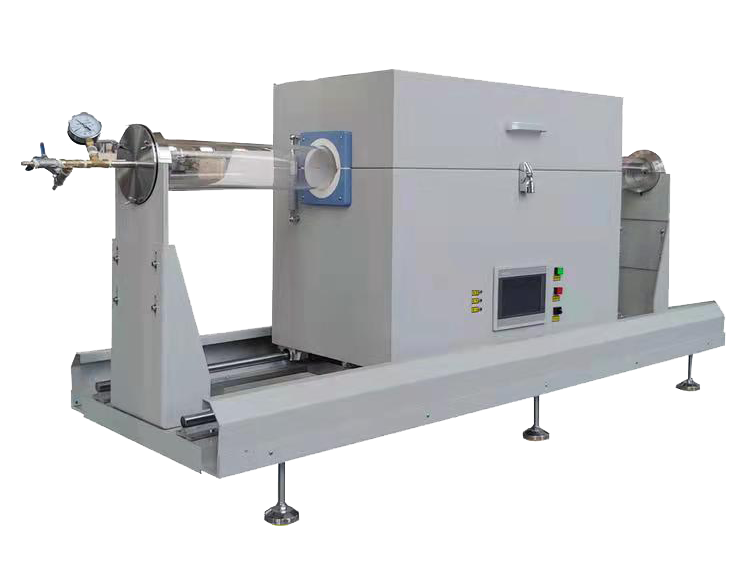

Rapid Cooling Slide Tube Furnace LYL-12HLG

DESCRIPTION:

Model No: LYL-12HLG
Heating Rate: ≤0.1-40°C/min
Rated Voltage: 220V/380V
Chamber Size: Customizable
Design Temperature: 800°C-1800°C
Temperature Control Accuracy: ±1°C
Temperature Measuring Element: K (0-1300°C) / S(0-1600°C)/ B (0-1820°C)

Customization > Get A Quote

PRODUCT INTRODUCTION

Brief Introduction

The rapid cooling slide tube furnace LYL-12HLG adopts advanced technology and is independently developed and manufactured as a new energy-saving and eco-friendly electric furnace. It features an advanced and reasonable structure with an elegant and generous appearance. The outer shell is made of high-quality cold-rolled steel plates processed by advanced CNC machine tools, and finished with luxurious and elegant two-tone imported epoxy powder electrostatic spraying. It is high temperature resistant and corrosion resistant. It adopts high-quality Sino-joint venture heating elements such as resistance wires, silicon carbide rods and silicon molybdenum rods. An air cooling system is equipped between the double-layer furnace shells to realize rapid cooling. The furnace boasts uniform temperature field, low surface temperature of the furnace body, adjustable heating, holding and cooling rates, as well as excellent energy-saving performance. The furnace chamber is constructed of composite alumina fiber materials by CNC technology. It features outstanding thermal shock resistance, strong resistance to rapid heating and cooling, and good corrosion resistance. It does not collapse, crystallize or shed slag, causes no pollution, and enjoys a long service life. The control system adopts computer artificial intelligence regulation technology with PID regulation, automatic control and self-tuning functions. It supports multi-segment program programming to set various heating, holding and cooling procedures with high temperature control accuracy. It adopts integrated module silicon controlled rectifier control and phase-shift triggering. The protection system provides independent protection against over-temperature, over-pressure, over-current, electric leakage, short circuit and other faults. It features a high degree of automation, with all technical indicators reaching advanced industry standards.

ApplicationThis equipment is widely applied in universities, scientific research institutes, industrial and mining enterprises. It is ideal for experimental research and production in the fields of powder materials, electronics, metallurgy, medicine, ceramics, glass and new materials, chemical engineering, metal sintering and metal heat treatment.

PRODUCT PARAMETERS

Main Technical Parameters

Item	Specification
Design Power	4-35 kW
Rated Voltage	220/380 V
Set Temperature	800°C, 1000°C, 1200°C, 1400°C, 1600°C, 1700°C, 1800°C, 2200°C
Heating Rate	≤1-20 °C/min (freely adjustable)
Heating Zone	100, 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500 mm
Temperature Control Zone	Adopts 1-3 zone independent control, temperature of each zone is adjustable
Furnace Tube Diameter	30, 40, 60, 80, 100, 120, 150, 180, 200 mm
Furnace Tube Material	Quartz, corundum, imported steel pipe, etc.
Furnace Tube Structure	The furnace tube is relatively long with both ends fixed. After heating is completed, the furnace body can be quickly slid away through the slider at the bottom and the track, exposing the furnace tube to cold air to achieve the purpose of rapid cooling.

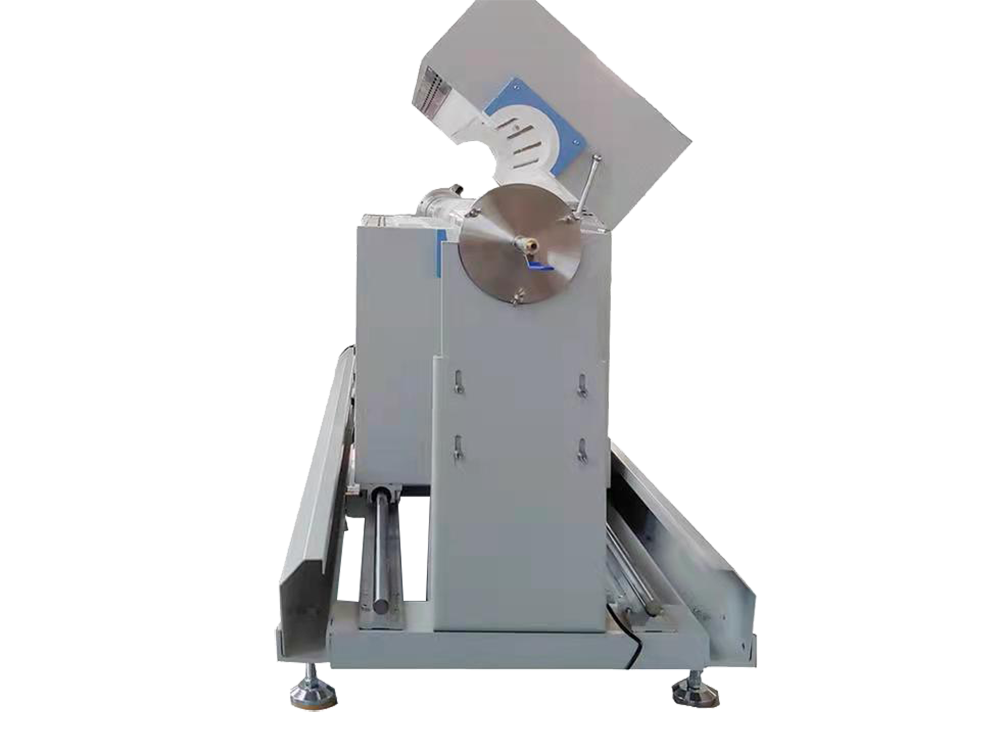

Furnace Body Opening	The furnace body is divided into upper and lower halves, which can be opened to facilitate the inspection of the furnace chamber and the replacement of the furnace tube.
Temp. Control Accuracy	±1°C
Buttons	Adopts imported metal stainless steel buttons with a service life of over 100,000 times, and comes with LED indicator lights.
Display Parameters	Display parameters: temperature, temperature segment, time period, remaining time, output power percentage, voltage, current, etc.
Temperature Curve Setting	Temperature curve setting: Adopts an intelligent temperature controller, with standard PID, artificial intelligence adjustment PID or MT+ and other adjustment methods. It has self-tuning and self-learning functions, with excellent control characteristics of no overshoot and no underdamping. It has 30-step program control function, which can realize arbitrary slope heating and cooling control. It has programmable/controllable commands such as jump (cycle), run, pause and stop, and allows modification of the program at any time during the program control operation; it adopts an artificial intelligence adjustment algorithm with curve fitting function to obtain a smooth curve control effect.
Control	Adopts closed-loop technology, controllable silicon module trigger control, phase-shift trigger control method. Output voltage, current or power are continuously adjustable, with the characteristics of constant voltage, constant current or constant power; the current loop is the inner loop, and the voltage loop is the outer loop. When the sudden load or no-load current exceeds the limit value, the output current of the regulator is within the rated current range to ensure the normal operation of the output and regulator. At the same time, the voltage loop also participates in regulation, so that the output current of the regulator is within the rated current range. Under the premise of sufficient regulation margin, it maintains the constancy of the output current and voltage; thereby protecting the heating elements from excessive current and voltage impact, achieving safe and reliable control effect and control precision.
Feeding Method	Periodic feeding, double-ended sealing
Thermocouple Model	Type K (0-1300°C), Type S (0-1600°C), Type B (0-1820°C)
Heating Element	Resistance wire, silicon carbon rod, silicon molybdenum rod
Furnace Chamber Material	Composite alumina fiber
Furnace Shell Surface Temp.	≤42°C

Remarks:

1. Furnace tube size and temperature can be customized according to customer requirements. 2. Electronic control system: Computer control, touch screen control and microcomputer control are optional.

STANDARD ACCESSORIES

Standard Accessories

Name		Picture	Quantity	Description
High-temperature Gloves			1 pair	Excellent comfort, keeps hands warm; Cut-resistant, abrasion-resistant, and heat-resistant (withstands contact with 350°C heat for 60 seconds, 100°C heat for 180 seconds). Durable.
Heating Elements	Silicon Carbide Rods		2 pieces	Silicon carbide elements, characterized by their high operating temperature, hardness, and brittleness, are ready for use after formation. For instance, silicon carbide rods and tubes, made from silicon carbide, can achieve a heating temperature of up to 1500°C under dry air conditions. Under vacuum conditions, the operating temperature ranges from 1000°C to 1200°C, while in a nitrogen atmosphere, the long-term use temperature reaches 1350°C.
Heating Elements	Silicon Molybdenum Rods		2 pieces	Silicon molybdenum rods, when heated to high temperatures in an oxidizing atmosphere, form a dense layer of quartz glass on the surface, protecting them from further oxidation. Therefore, silicon molybdenum rods exhibit high-temperature oxidation resistance. In an oxidizing atmosphere, they can reach temperatures up to 1800°C, making them suitable as heating elements for high-temperature furnaces in industries such as electronics, ceramics, magnetic materials, glass, metallurgy, and refractories.
Crucible Tongs			1 piece	1.A common chemical instrument typically used for handling crucibles. Generally made of stainless steel or other non-flammable, oxidation-resistant hard materials. 2.Clean crucible tongs must be used. 3.When using crucible tongs to pick up a hot crucible, the tips should be preheated first to prevent the crucible from cracking due to localized cooling. After use, the tongs should be placed on a table or asbestos mat with the tips facing upward. 4.After the experiment, crucible tongs should be cleaned, dried, and stored in the laboratory equipment cabinet. 5.Use the curved section for gripping crucibles; the tips are for other purposes. 6.Crucible tongs are not necessarily used exclusively with crucibles; they can also be used independently.

Optional Accessories List

Separate Control Cabinet	Touch Screen Instrument	Remote Auxiliary Module
Crucible Hook	Reducer Pipe / Reducing Pipe	Rotating/Tilting Furnace Tube
Crucible, Quartz Boat	Pipe Plug / Tube End Cap	Vacuum Pump
Corundum Tube / Quartz Tube	Thermocouple	Centralized Control Industrial PC
Caster Wheel	Multi-point Temperature Measurement	Exhaust Gas Purification Device

Special Note

Item	Content
Factory Environment	1. Indoor use; 2. Ambient temperature range: ±5~45℃; 3. Relative humidity of surrounding environment does not exceed 85%; 4. No conductive dust, explosive gases, or gases that can severely damage metals and insulating materials around the furnace.
Safety Protection	1. When using the electric furnace for the first time or after long-term shutdown, baking is required; otherwise, it is easy to cause furnace cracking. 2. Keep clean regularly and check whether the furnace wiring is in good contact. 3. When using the electric furnace, the furnace temperature shall not exceed the rated temperature to avoid damaging the heating elements. It is forbidden to pour various flammable liquids and molten metals into the furnace. 4. During operation, generally below 300℃, the heating rate should not be too fast, because the furnace chamber is cold at the beginning of heating and needs to absorb a lot of heat.
Friendly Tips	1. To ensure the normal service life of the equipment, please do not run at the rated temperature for a long time. 2. Carefully check and verify the quantity of goods and accessories upon receipt to avoid inconvenience caused by missing or incorrect items. 3. To extend the service life of the instrument, we recommend a heating rate and cooling rate of 10℃/min. 4. The cooling rate should not exceed 5℃/min. 5. This furnace has no vacuum sealing structure, so flammable and explosive gases must not be introduced. 6. After this furnace has been used for a period of time, slight cracks may appear in the furnace chamber, which is a normal phenomenon and will not affect usage. At the same time, it can be repaired with alumina coating.

Item

Content

Factory Environment

1. Indoor use;

2. Ambient temperature range: ±5~45℃;

3. Relative humidity of surrounding environment does not exceed 85%;

4. No conductive dust, explosive gases, or gases that can severely damage metals and insulating materials around the furnace.

Safety Protection

1. When using the electric furnace for the first time or after long-term shutdown, baking is required; otherwise, it is easy to cause furnace cracking.

2. Keep clean regularly and check whether the furnace wiring is in good contact.

3. When using the electric furnace, the furnace temperature shall not exceed the rated temperature to avoid damaging the heating elements. It is forbidden to pour various flammable liquids and molten metals into the furnace.

4. During operation, generally below 300℃, the heating rate should not be too fast, because the furnace chamber is cold at the beginning of heating and needs to absorb a lot of heat.

Friendly Tips

1. To ensure the normal service life of the equipment, please do not run at the rated temperature for a long time.

2. Carefully check and verify the quantity of goods and accessories upon receipt to avoid inconvenience caused by missing or incorrect items.

3. To extend the service life of the instrument, we recommend a heating rate and cooling rate of 10℃/min.

4. The cooling rate should not exceed 5℃/min.

5. This furnace has no vacuum sealing structure, so flammable and explosive gases must not be introduced.

6. After this furnace has been used for a period of time, slight cracks may appear in the furnace chamber, which is a normal phenomenon and will not affect usage. At the same time, it can be repaired with alumina coating.

Common Faults & Trouble Shooting

Fault Phenomena	Fault Causes	Troubleshooting Methods
No power indication when turning on the control power switch	Control circuit issue, blown fuse, or no power supply	Check for short circuits, rectify, and replace the fuse
Voltage present but no current during equipment operation	Heating element broken	Replace the heating element
Instrument PV display shows the maximum temperature for the corresponding thermocouple type	Thermocouple short circuit	Replace the thermocouple
All power supplies normal but furnace does not heat up	Main control circuit damaged	Notify a qualified technician for repair
