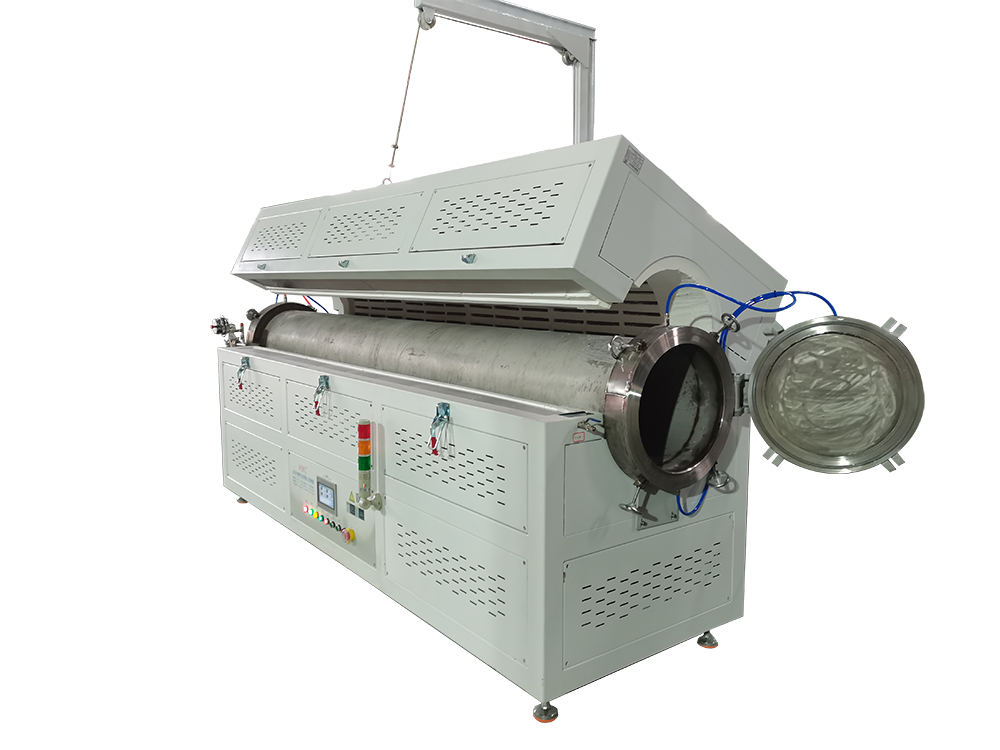

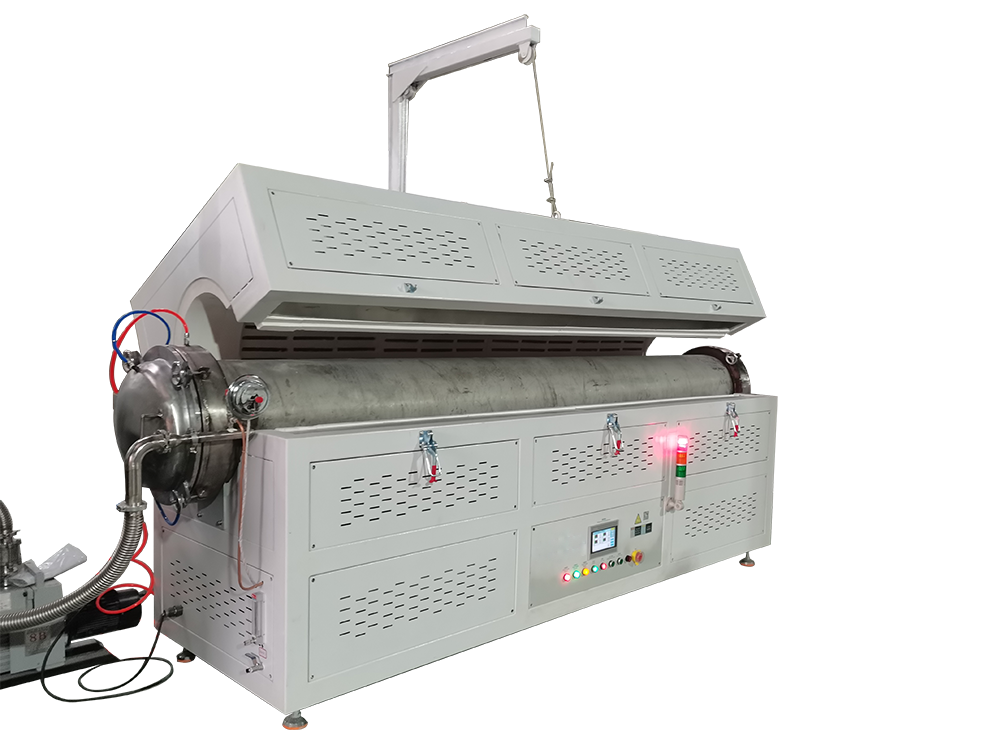

High Vacuum Openable Tube Furnace WLT-800GLZ

Brief Introduction

The High Vacuum Tube Furnace LYL-12FZGL is a new generation of energy-saving, environmentally friendly, and innovative electric furnace developed through independent R&D, incorporating advanced technology. It features a sophisticated and rational structure with a refined, aesthetically pleasing design. The outer casing is constructed from high-quality cold-rolled steel plate, processed by CNC machine tools, and finished with a premium, durable two-tone imported epoxy powder electrostatic spray coating, providing resistance to high temperatures and corrosion. High-quality resistance wires, silicon carbide rods, or molybdenum disilicide rods serve as heating elements. The double-layer furnace shell with an air insulation layer maintains a low surface temperature. The furnace offers advantages such as a balanced temperature field, low exterior surface temperature, adjustable heating rates, and energy efficiency. The furnace chamber is constructed from ceramic fiber material using a CNC process, ensuring excellent thermal shock resistance, tolerance to rapid heating and cooling, corrosion resistance, and is resistant to sagging, crystallization, and dusting, with no pollution and a long service life. The control system utilizes microcomputer-based artificial intelligence regulation technology, featuring PID adjustment, fully automatic control, and auto-tuning functions. It supports multi-segment programmable profiles for various heating and holding steps, achieving high temperature control accuracy. It employs integrated thyristor modules and phase-shift triggering. The protection system includes independent safeguards against over-temperature, over-voltage, over-current, leakage, and short circuits. The equipment boasts a high degree of automation, with all indicators meeting advanced standards.

The equipment features a pleasing appearance, rational design, and is simple and convenient to operate.

Product Features

• The casing employs a specially designed double-layer structure of high-quality cold-rolled steel plate, with a high-temperature baked paint finish for lasting durability.




• Air insulation provides benefits such as a balanced temperature field, low surface temperature, and fast heating rates.




• The specially designed vacuum system is easy to operate, achieves a high vacuum level, and has minimal leakage. It uses a molecular pump combined with a foreline pump (ultimate vacuum: 10⁻⁵ Pa).




• The sealing system utilizes stainless steel flanges, furnace tubes, and high-temperature resistant O-ring silicone rubber seals. Gas flow is regulated by a flow meter and needle valve. The valve control system includes inlet, outlet, and vacuum valves, allowing for the introduction of inert gases like nitrogen and argon.




• The furnace chamber is constructed from imported composite alumina fiber material using a special process, resulting in approximately 60% energy savings compared to traditional electric furnaces.




• The control system uses microcomputer-based AI regulation technology, supporting multi-segment programmable profiles for heating, holding, and cooling steps, with high precision. It features crystal modular thyristor control and phase-shift triggering, along with high-quality heating elements.




• The digital control panel includes protection functions against over-temperature, over-voltage, over-current, thermocouple break, and power failure.

Temperature Range: 1000°C, 1200°C, 1400°C, 1600°C, 1700°C, 1800°C (Selectable models).

Application

This series of equipment is ideal for research institutions, universities, and industrial enterprises for both experimental and production purposes. It is primarily used for high-temperature precision annealing, nanocrystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder experiments, nanomaterial sintering, metal part quenching, and all other heat treatment processes requiring high-temperature conditions.

Qualification & Honor

• ISO 9001:2015 Quality Management System Certification




• CE Certification (EU Conformity)




• Luoyang City "Model Enterprise for Civilized and Honest Operation"




• "Leading Brand in China's Electric Furnace Industry"




• "AAA Enterprise for Quality, Service, and Creditworthiness"




• Products can withstand testing by authoritative inspection institutions; third-party verification certificates can be provided upon request.

Main Functions & Features

1. Energy-saving and environmentally friendly (Furnace chamber uses high-purity composite alumina/ceramic polycrystalline fiber; lightweight, low thermal mass, energy-efficient, operates on average at half power).




2. Easy replacement, saves time and energy (Heating elements are high-quality resistance wires/silicon carbide rods/molybdenum disilicide rods, with long service life and easy replacement).




3. Integrated design, convenient and flexible to use, less prone to wire breakage, saves operational space.




4. High temperature control precision (High-quality controller, precision ±1°C). The controller can be accompanied by a third-party test certificate.




5. Good furnace temperature uniformity (Rational layout, balanced temperature field, no dead zones in chamber).




6. Microcomputer program temperature control, adjustable heating rate, automatic operation requiring no supervision.




7. Automatic protection and alarm for over-temperature, over-voltage, over-current, leakage, thermocouple break, and heater breakage.




8. Openable furnace door for convenient access and placement of furnace tubes.




9. Wide application range: Used in universities, research institutes, and industrial enterprises for experiments and production involving powders, military industry, electronics, metallurgy, pharmaceuticals, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering, and metal heat treatment.




10. Double-layer shell with air convection insulation.




11. Powder-coated casing, elegant two-tone appearance.




12. Excellent reputation, numerous satisfied customers.




13. Excellent cost-performance, comprehensive after-sales service, 1-year warranty, lifetime on-site maintenance service.
