Pit Furnace

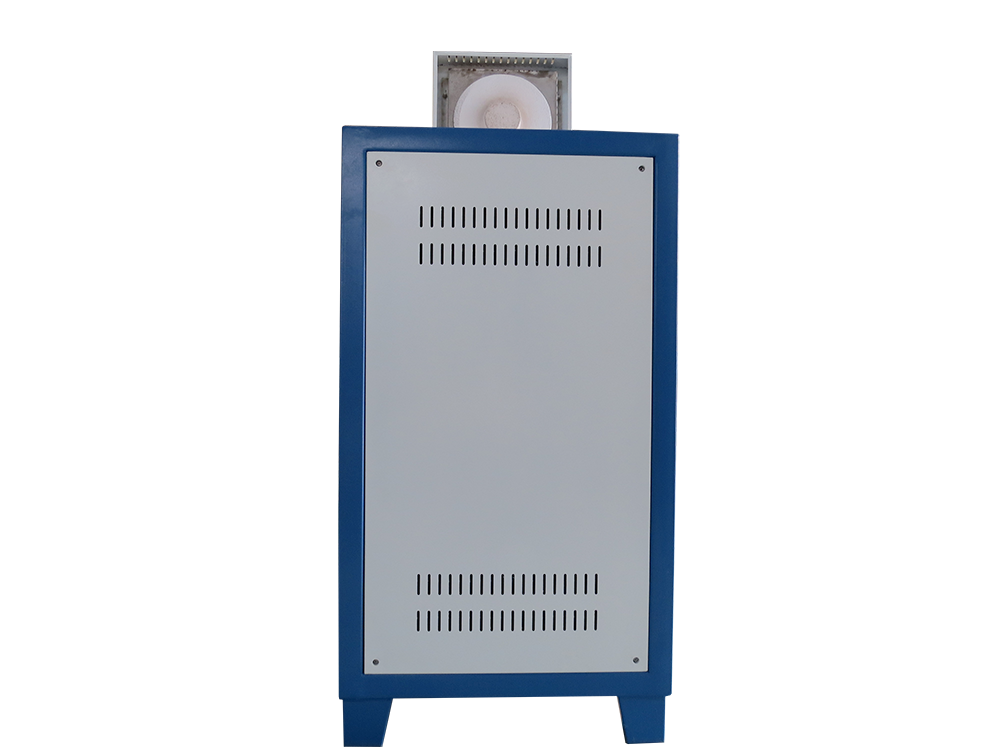

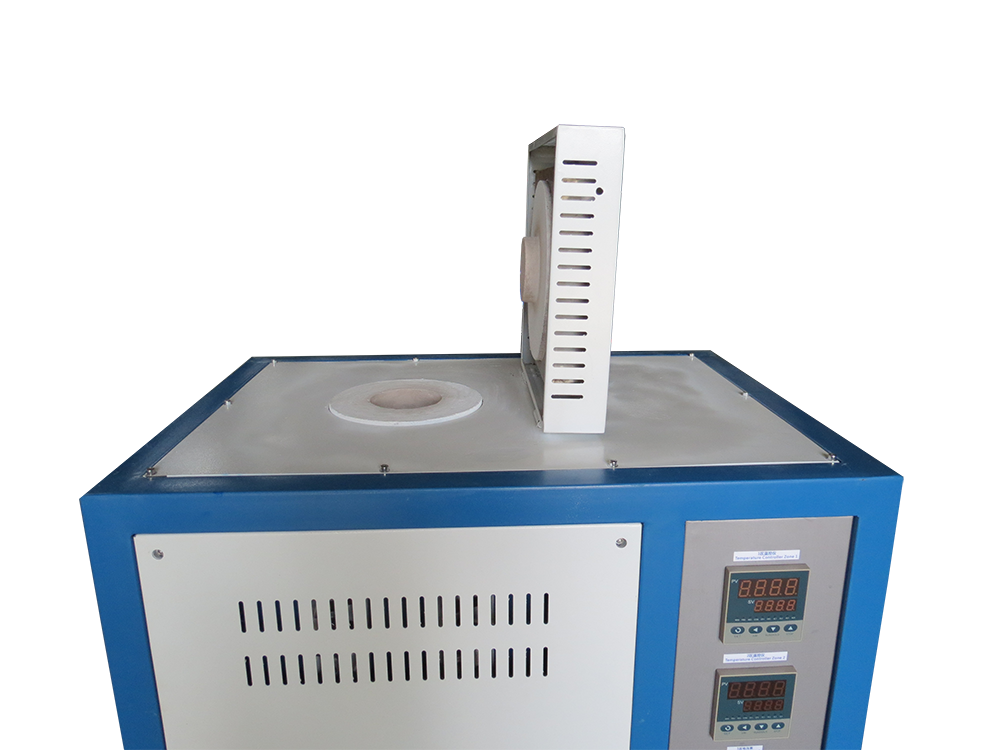

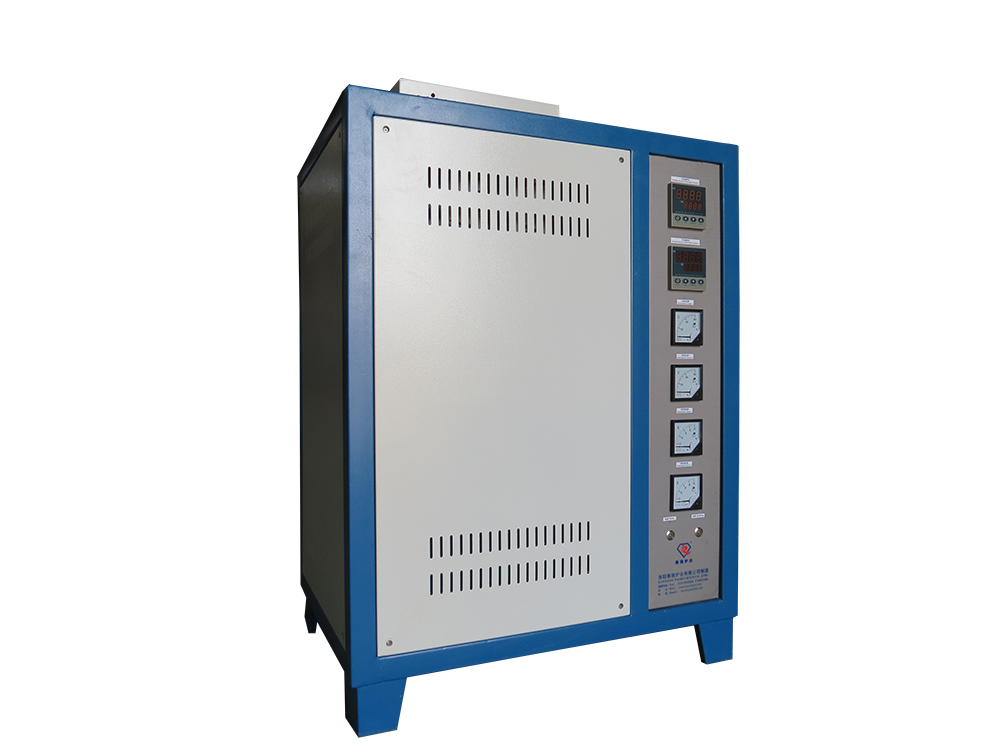

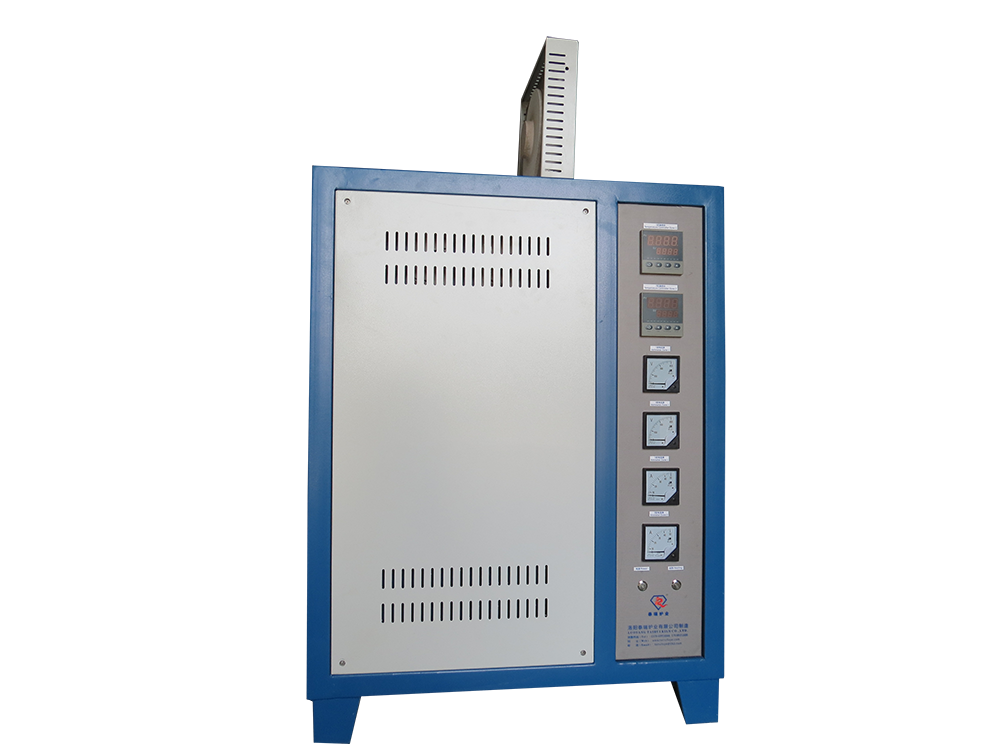

LYL-12JSL High-Temperature Pit Furnace
DESCRIPTION:
- Model No: LYL-12JSL
- Heating Rate: ≤0.1-40°C/min
- Rated Voltage: 220V/380V
- Chamber Size: Customizable
- Design Temperature: 800°C-1800°C
- Temperature Control Accuracy: ±1°C
- Temperature Measuring Element: K (0-1300°C) / S(0-1600°C)/ B (0-1820°C)
//
PRODUCT INTRODUCTION
Brief Introduction
The LYL-12JSL series high-temperature energy-saving pit furnace is a new energy-saving and environmentally friendly electric furnace independently researched, developed and manufactured with the introduction of advanced technologies.
It features an advanced and reasonable structure as well as an elegant and generous appearance. The outer shell is made of high-quality cold-rolled steel plate processed by advanced CNC machine tools, and finished with luxurious and aesthetic imported two-color epoxy powder electrostatic spraying technology. It delivers excellent high temperature resistance and corrosion resistance. Fitted with premium heating elements and an air cooling system between the double-layer furnace shell, the furnace enables rapid cooling.
It enjoys the advantages of uniform temperature field, low furnace surface temperature, fast heating and cooling rate, and high energy efficiency. The furnace chamber is constructed of imported composite alumina fiber materials by CNC forming technology, featuring outstanding thermal shock resistance and corrosion resistance. It will not collapse, crystallize, shed residues or cause pollution, and serves a long service life.
The control system adopts microcomputer artificial intelligence regulation technology, equipped with PID regulation, automatic control and self-tuning functions, as well as multi-section program programming. It can compile various heating, holding and cooling procedures with high temperature control accuracy. It adopts integrated module SCR control and phase-shift triggering. The protection system provides independent protections against over-temperature, over-pressure, over-current, electric leakage and short circuit. With a high degree of automation, all technical indicators have reached the advanced industry level.
Application
This equipment is widely used in universities, scientific research institutes, industrial and mining enterprises for experimental and production purposes involving powder, electronics, metallurgy, medicine, ceramics, new materials, chemical engineering, metal sintering and metal heat treatment.
Qualifications & Honors
-
ISO 9001:2015 Quality Management System Certification
-
CE Certification (EU Conformity)
-
Luoyang City "Model Enterprise for Civilized and Honest Operation"
-
"Leading Brand in China's Electric Furnace Industry"
-
"AAA Enterprise for Quality, Service, and Creditworthiness"
-
Products can withstand testing by authoritative inspection institutions; third-party verification certificates can be provided upon request.
//
PRODUCT PARAMETERS
Main Technical Parameters
Item |
Value |
|---|---|
Rated Voltage |
380V 50/60Hz |
Heating Rate |
≤1-40℃/min (humanized adjustable) |
Temperature Control Accuracy |
±1℃ |
Control Mode |
Adopting microcomputer intelligent program instrument (automatic programmable heating/holding/cooling) PID regulation |
Dual-loop Protection |
Overtemperature, overpressure, overcurrent, short circuit, open circuit, power failure, leakage, etc. |
Thermocouple Type |
K/E/S Type |
Heating Element |
Resistance wire/U-type silicon carbon rod/silicon molybdenum rod |
Chamber Material |
The chamber is made of imported composite high-temperature fiber material constructed by CNC process, with strong thermal shock resistance, good corrosion resistance, no collapse, no crystallization, no slag dropping, no pollution, and long service life |
Furnace Door Structure |
Front-opening upward |
Surface Temperature |
≤45℃ |
Temperature Range |
800℃ 1000℃ 1200℃ 1400℃ 1600℃ 1700℃ 1800℃ 2200℃ |
Selection Guide
Effective Chamber Size (mm) |
Voltage (V) |
Power (kW) |
Control Accuracy (℃) |
|---|---|---|---|
Φ300×300 |
380 |
10 |
±1 |
Φ500×500 |
380 |
25 |
±1 |
Φ700×500 |
380 |
30 |
±1 |
Φ800×500 |
380 |
40 |
±1 |
Φ1200×800 |
380 |
80 |
±1 |
Note:
-
The chamber can be made in round or square shape, and dimensions and temperature can be customized according to customer requirements.
-
Electrical control system: Computer control, touch screen control, and microcomputer control are optional.
//
STANDARD ACCESSORIES
Standard Accessories
Name |
Picture |
Quantity |
Description |
|
High-temperature Gloves |
|
1 pair |
Excellent comfort, keeps hands warm; Cut-resistant, abrasion-resistant, and heat-resistant (withstands contact with 350°C heat for 60 seconds, 100°C heat for 180 seconds). Durable. |
|
|
Heating Elements |
Silicon Carbide Rods |
|
2 pieces |
Silicon carbide elements, characterized by their high operating temperature, hardness, and brittleness, are ready for use after formation. For instance, silicon carbide rods and tubes, made from silicon carbide, can achieve a heating temperature of up to 1500°C under dry air conditions. Under vacuum conditions, the operating temperature ranges from 1000°C to 1200°C, while in a nitrogen atmosphere, the long-term use temperature reaches 1350°C. |
Silicon Molybdenum Rods |
|
2 pieces |
Silicon molybdenum rods, when heated to high temperatures in an oxidizing atmosphere, form a dense layer of quartz glass on the surface, protecting them from further oxidation. Therefore, silicon molybdenum rods exhibit high-temperature oxidation resistance. In an oxidizing atmosphere, they can reach temperatures up to 1800°C, making them suitable as heating elements for high-temperature furnaces in industries such as electronics, ceramics, magnetic materials, glass, metallurgy, and refractories. |
|
Crucible Tongs |
|
1 piece |
1.A common chemical instrument typically used for handling crucibles. Generally made of stainless steel or other non-flammable, oxidation-resistant hard materials. 2.Clean crucible tongs must be used. 3.When using crucible tongs to pick up a hot crucible, the tips should be preheated first to prevent the crucible from cracking due to localized cooling. After use, the tongs should be placed on a table or asbestos mat with the tips facing upward. 4.After the experiment, crucible tongs should be cleaned, dried, and stored in the laboratory equipment cabinet. 5.Use the curved section for gripping crucibles; the tips are for other purposes. 6.Crucible tongs are not necessarily used exclusively with crucibles; they can also be used independently. |
|
Optional Accessories List
Integrated Control |
Touch Screen Instrument |
Remote Auxiliary Module |
Observation Window |
Exhaust Hole and Chimney |
Hot Air Fan |
Crucible, Boat |
Door Plug |
Furnace Bottom Plate |
Forced Draft |
Thermocouple |
Centralized Control Industrial Computer |
Caster Wheel |
Multi-point Temperature Measurement |
Exhaust Gas Purification Device |
Special Note
Item |
Content |
|---|---|
|
Factory Environment |
1. Indoor use; 2. Ambient temperature range: ±5~45℃; 3. Relative humidity of surrounding environment does not exceed 85%; 4. No conductive dust, explosive gases, or gases that can severely damage metals and insulating materials around the furnace. |
|
Safety Protection |
1. When using the electric furnace for the first time or after long-term shutdown, baking is required; otherwise, it is easy to cause furnace cracking. 2. Keep clean regularly and check whether the furnace wiring is in good contact. 3. When using the electric furnace, the furnace temperature shall not exceed the rated temperature to avoid damaging the heating elements. It is forbidden to pour various flammable liquids and molten metals into the furnace. 4. During operation, generally below 300℃, the heating rate should not be too fast, because the furnace chamber is cold at the beginning of heating and needs to absorb a lot of heat. |
|
Friendly Tips |
1. To ensure the normal service life of the equipment, please do not run at the rated temperature for a long time. 2. Carefully check and verify the quantity of goods and accessories upon receipt to avoid inconvenience caused by missing or incorrect items. 3. To extend the service life of the instrument, we recommend a heating rate and cooling rate of 10℃/min. 4. The cooling rate should not exceed 5℃/min. 5. This furnace has no vacuum sealing structure, so flammable and explosive gases must not be introduced. 6. After this furnace has been used for a period of time, slight cracks may appear in the furnace chamber, which is a normal phenomenon and will not affect usage. At the same time, it can be repaired with alumina coating. |
Common Faults & Trouble Shooting
Fault Phenomena |
Fault Causes |
Troubleshooting Methods |
No power indication when turning on the control power switch |
Control circuit issue, blown fuse, or no power supply |
Check for short circuits, rectify, and replace the fuse |
Voltage present but no current during equipment operation |
Heating element broken |
Replace the heating element |
Instrument PV display shows the maximum temperature for the corresponding thermocouple type |
Thermocouple short circuit |
Replace the thermocouple |
All power supplies normal but furnace does not heat up |
Main control circuit damaged |
Notify a qualified technician for repair |
//
